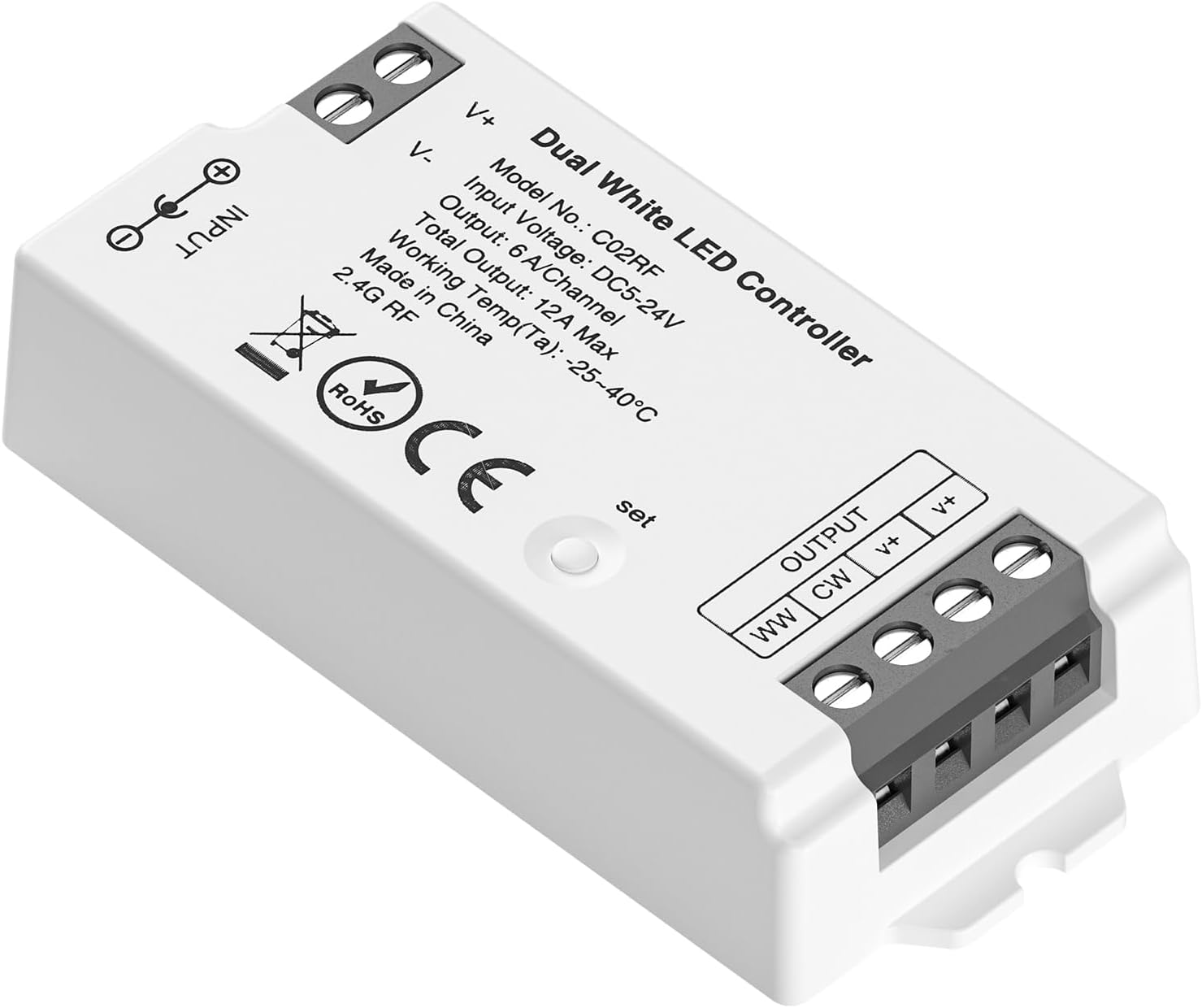

BTF-LIGHTING C02RF Tuya Controller Support PWM 5050SMD FCOB COB CCT(+ CW WW) 3pin Dual While LED Strip Support with WR02RF RC02RFB Remote DC5V/DC12V/DC24V Max 12A Indoor Use Only(NO Remote NO Power)

Overview

• Color : Cct
• Brand : BTF-LIGHTING
• Indoor/Outdoor Usage : Indoor
• Special Feature : Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway Auto-transmitting function, DC5V DC12V DC24V, Expand functions, Multi zone control, Work with RF Remote Tuya Gateway
• Light Source Type : LED
• Power Source : DC
• Light Color : Multicolor
• Theme : Indoor Lighting
• Occasion : Christmas
• Style : Modern

About this item

• 【Compatible Lights】Only support PWM 5050SMD 3528SMD 5630SMD CCT FCOB COB CCT 3 wires(+ WW CW ) Tunable Color Temperature LED strip. CAN NOT work with SPI LED strip light with IC, such as WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812 etc. Power: 6A/Channel Total output max 12A.DC5V 60W max.DC12V 144W max. DC24V 288W max.
• 【Two control methods】1. Must work with matching RF Remote. 2. Must work with Tuya Gateway/Bridge. Without RF Remote or Tuya Gateway the controller can not work .2.4GHz RF remote : WR02RF, RF02RFB RF remote. Tuya Gateway : GW01W.

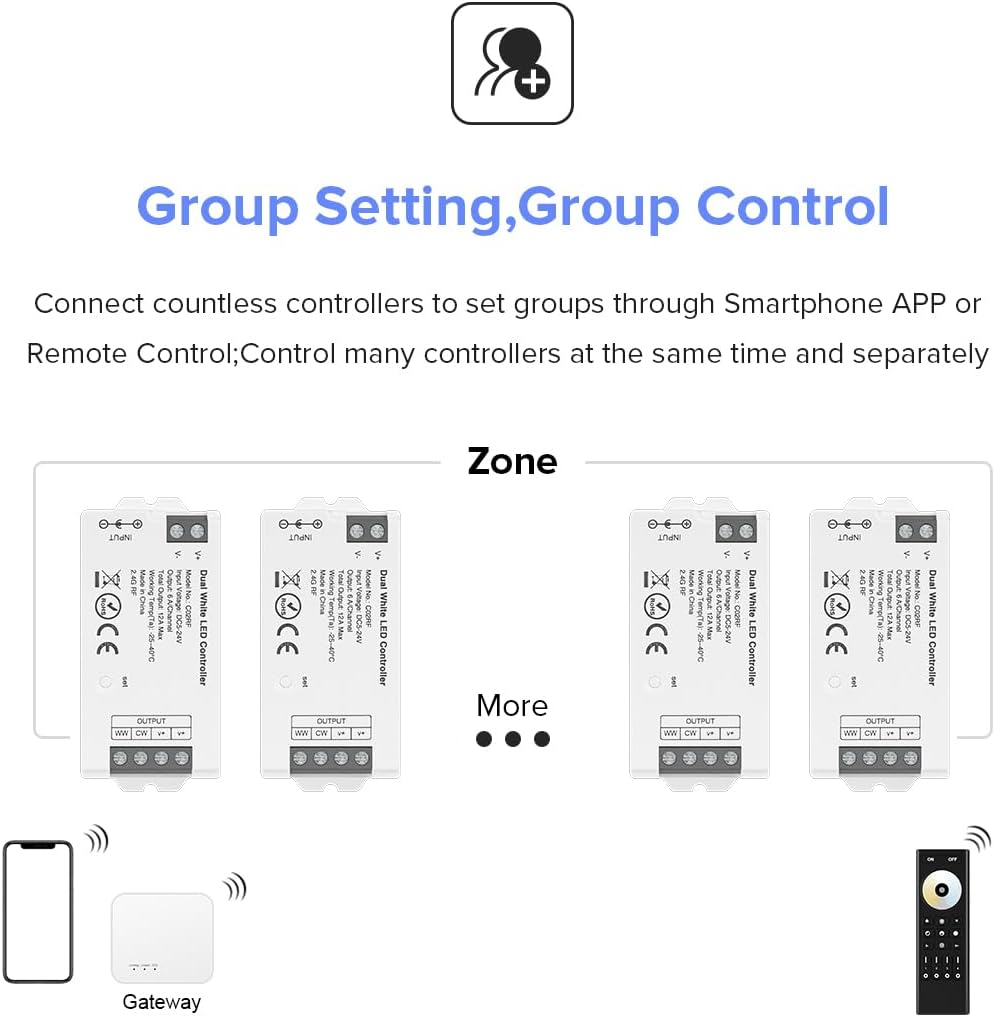

• 【Suitable For The Project】1.Multi zone control,Multiple controllers required. 2.Need 2.4GHz RF Remote or TuyaSmart SmartLife APP WiFi Control. 3. No need Bluetooth or WiFi. 4.Need Alexa or Google home third party voice control. 5.Cost effective LED project.

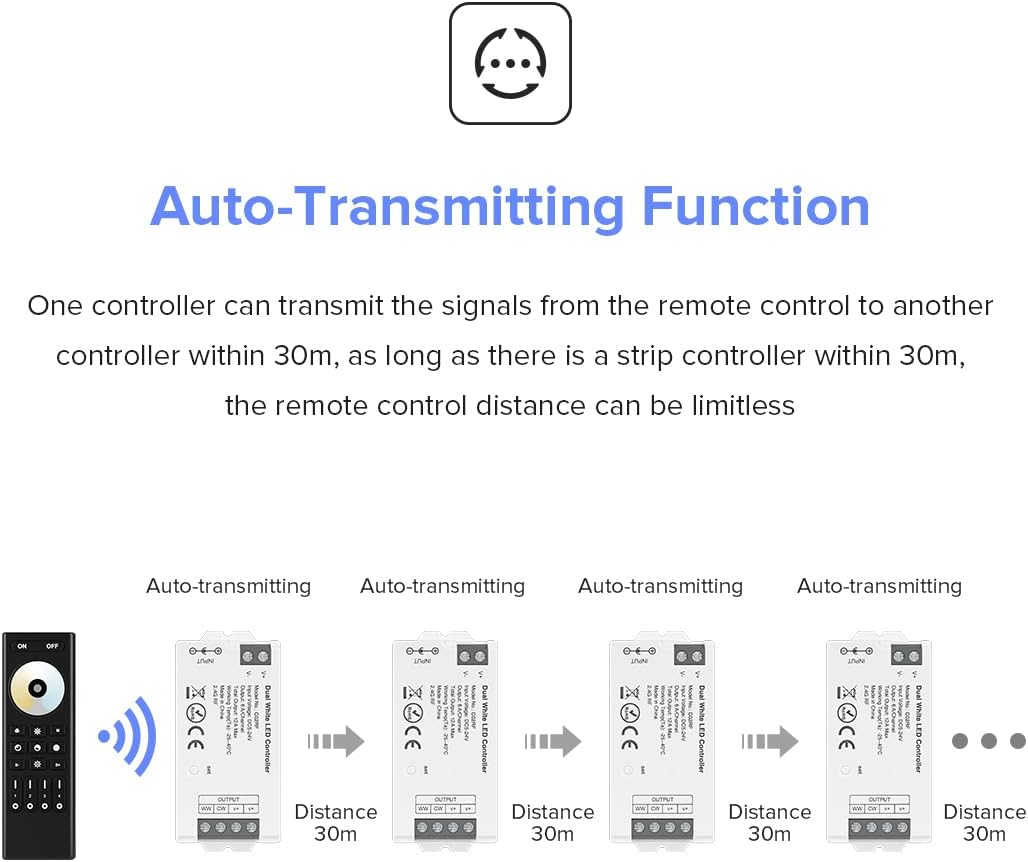

• 【Auto-transmitting Synchronization function】 One controller can transmit the signal from the remote control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the remote control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
• 【 Works with Tuya Gateway ,But Tuya Gateway is not included】Work with GW01W Wi-Fi+Bluetooth Dual Mode Tuya gateway/Bridge . Support Smart life and Tuya Smart APP . Can compatible with third-party voice control., Such as Alexa and Google home. Timmer setting, Device sharing, Tap-to-run, Automation, Don't disturb mode.
• 【Package content】1X C02RF Tuya Controller.Note: There is no RF Remote or Gateway.Remote and gateway need to be purchased separately.
