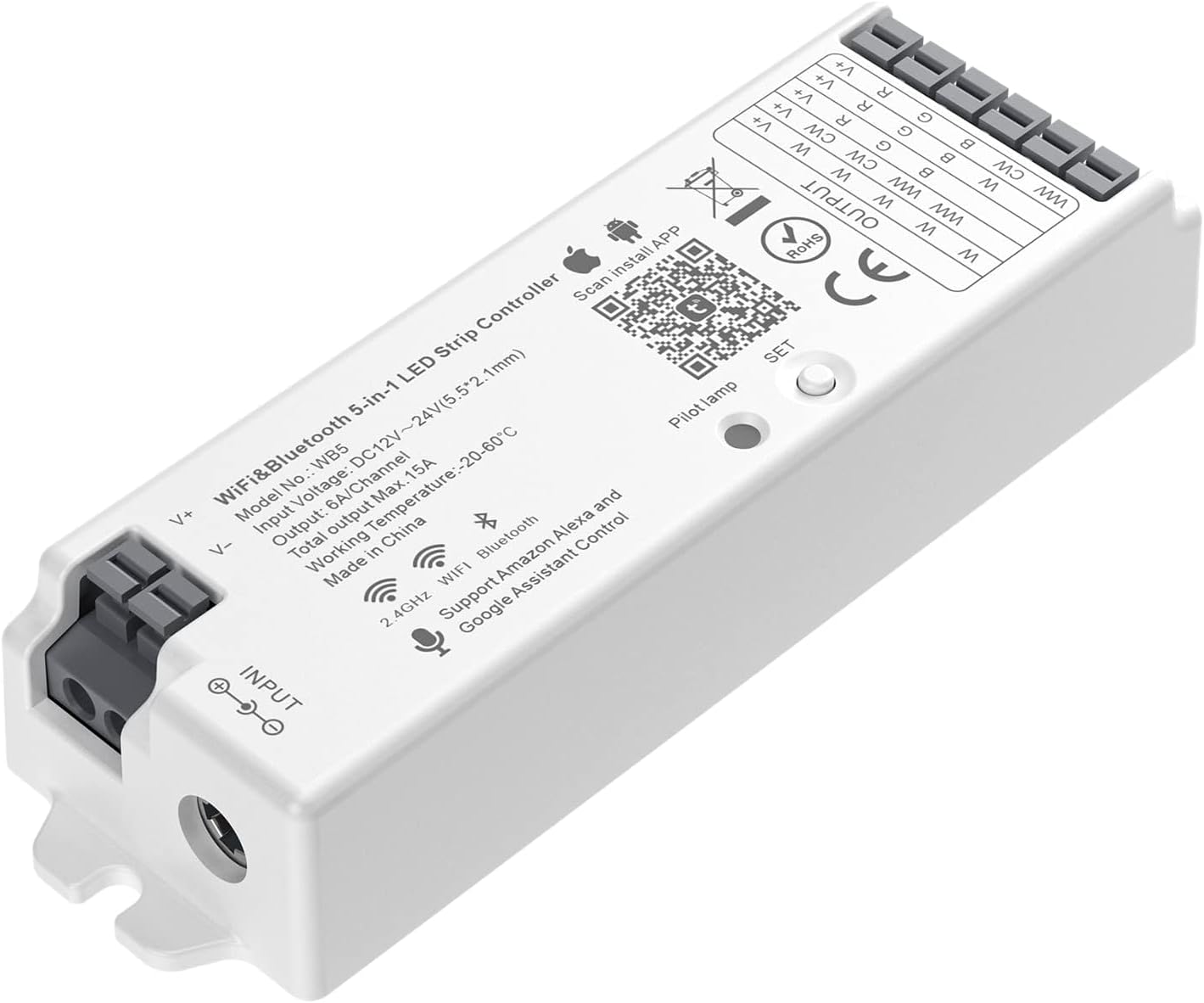

BTF-LIGHTING 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

Overview

• Color : White
• Brand : BTF-LIGHTING
• Voltage : 24 Volts
• Product Dimensions : 4.92"L x 1.38"W x 1.1"H
• Material : Plastic

About this item

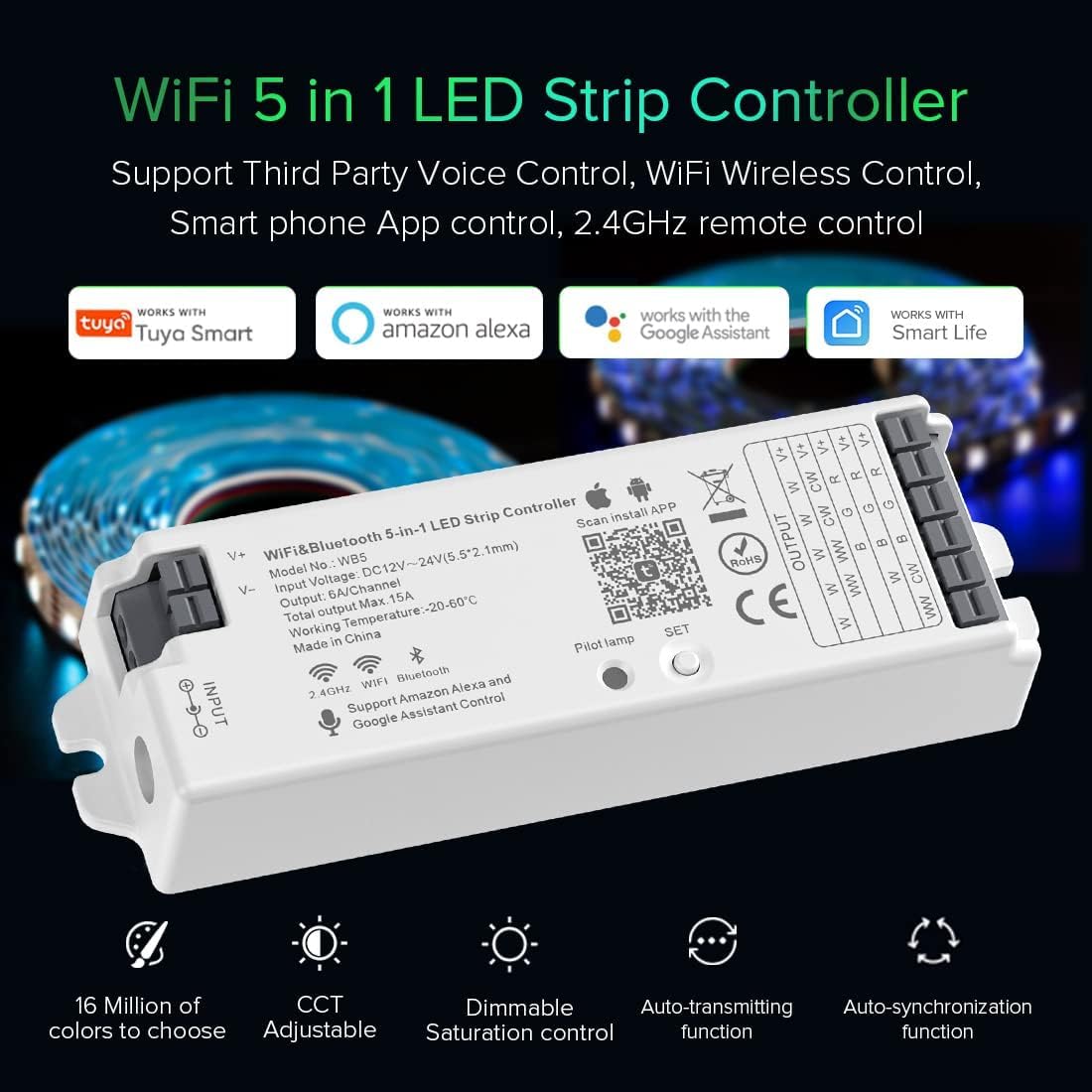

• 【5 in 1 Tuya WiFi PWM Controller】WB5=C01W+C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT(Dual White), C03W=RGB, C04W=RGBW, C05W=RGB+CCT. This Controller supports PWM monochrome, CCT, RGB, RGBW, RGB + CCT, WW+CW LED strip. Switch mode by one setting button.
• 【PWM LED Type】The operating voltage range is DC12V-24V.Without IC chip PWM LED. Single color 2 wires, CCT 3 wires, RGB 4 wires, RGBW 5 wires, RGBCCT 6 wires. FCOB 5050 3528 5630 5730 3014SMD etc LED string strip bulb lamp. Power: 6A/Channel,Total output max 15A .DC12V 180W max. DC24V 360W max.

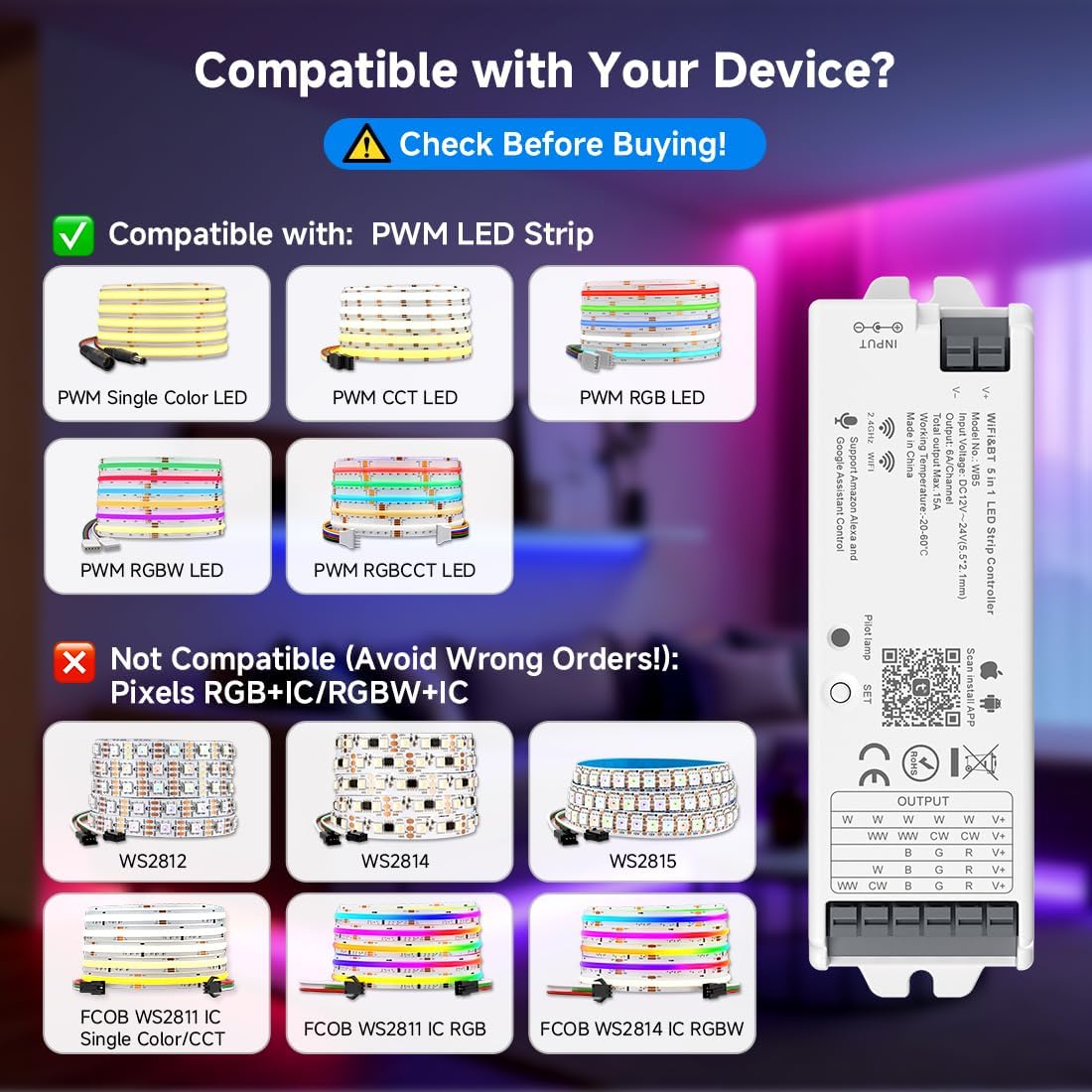

• 【Not Compatible with Addressable LED Strips】This PWM 5-in-1 2.4GHz WiFi Controller (Model WB5) is not compatible with addressable LED strips.Such as: WS2811/WS2812/WS2813/WS2814/WS2815/SK6812/WS2805/FCOB WS2811 IC (Single Color/CCT/RGB)/FCOB WS2812 IC RGB/FCOB WS2814 IC RGBW, or any FCOB/SMD strips using these ICs (RGB/RGBW/RGBCCT). Please verify your strip type before purchase.

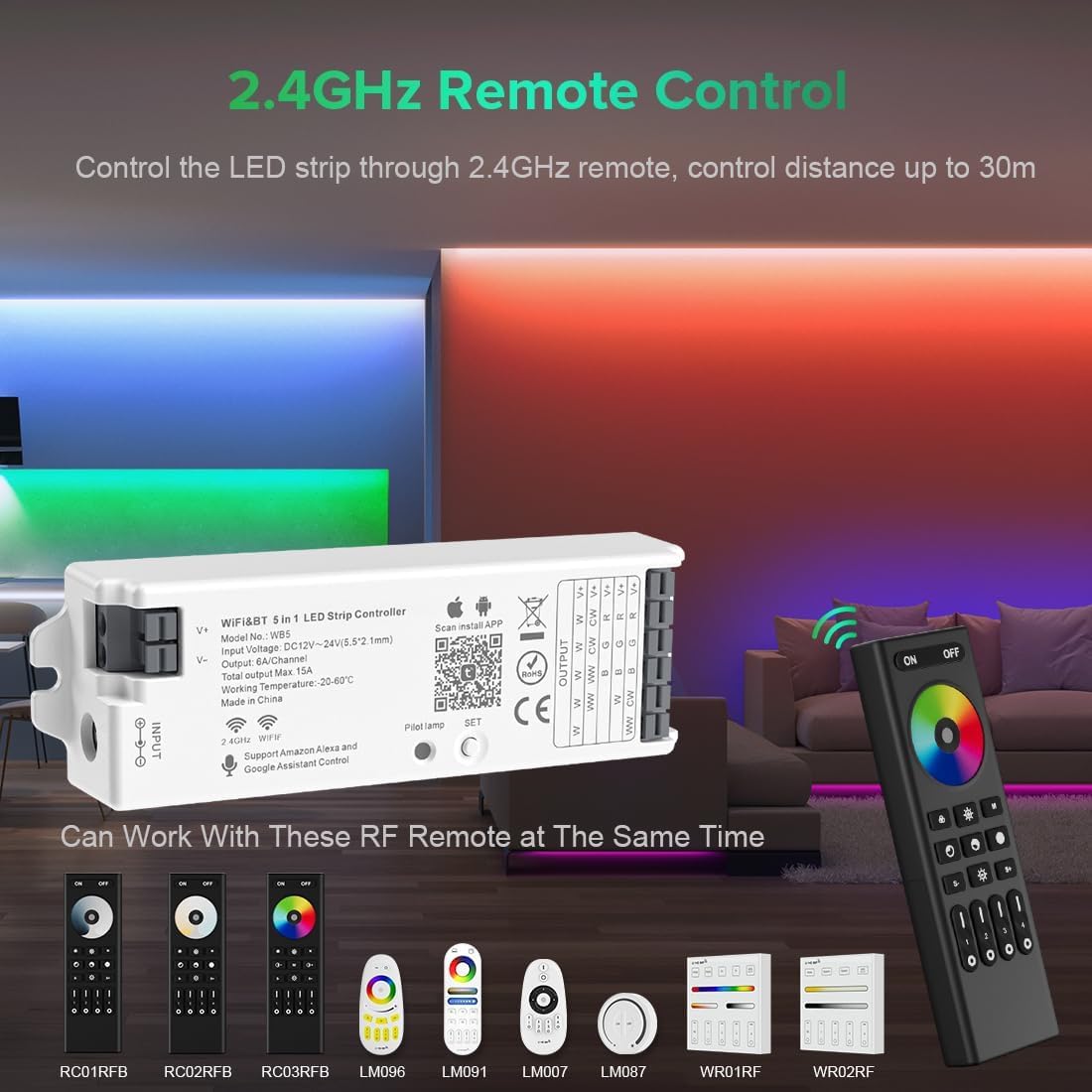

• 【3 control methods】1st:Compatible 2.4GHz RF Remote: WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB. 2nd: Tuya Smart ,Smart Life APP 2.4GHz Wi-Fi control. 3rd: Alexa, Google Home Assistant control.Three methods can be used at the same time.

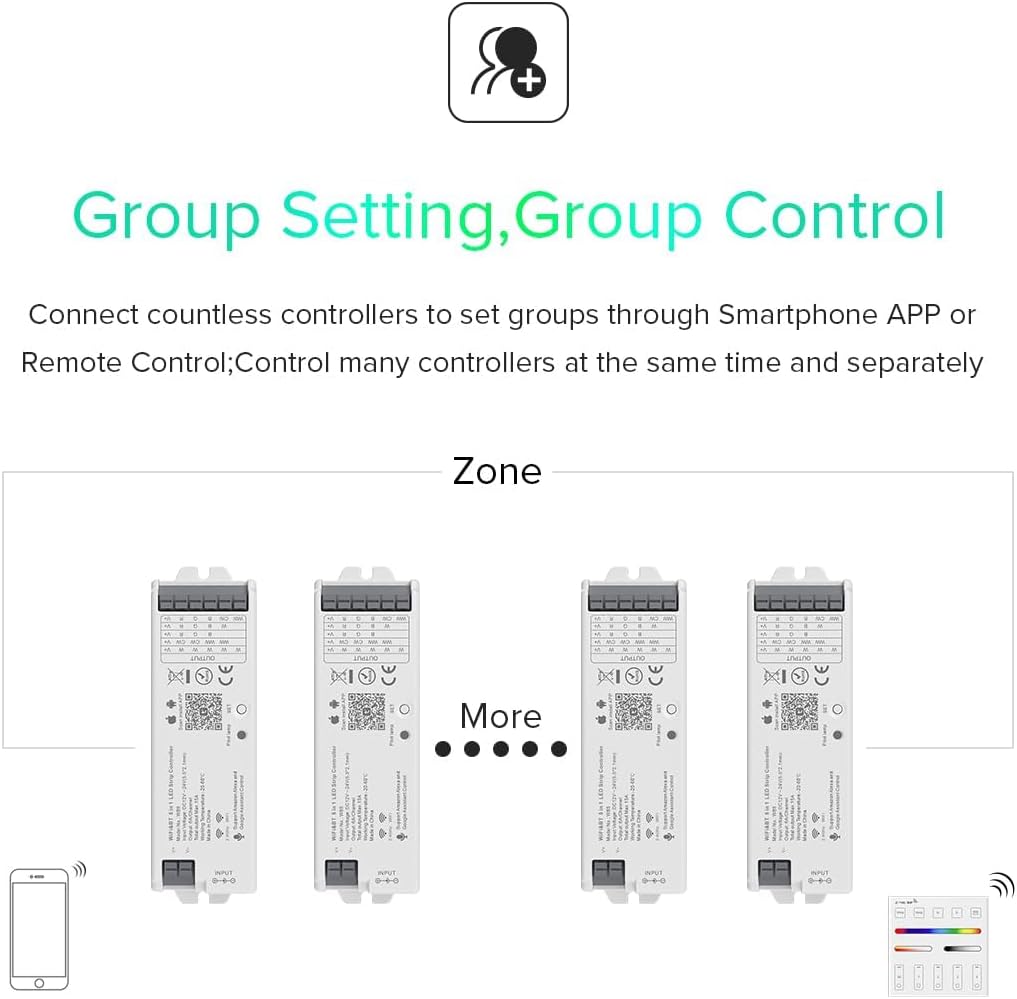

• 【Multi-function】16 millions of RGB colors. Dual White. Dim Brightness/saturation.Group control. Multi zone control. Voice command. Timmer setting.Countdown turn on/off. Biorhythm. Tap-to-Run and Automation. Secene customization. Sleep/wakeup plan. Don’t disturb mode. Device sharing. Selection of different usage scenarios.

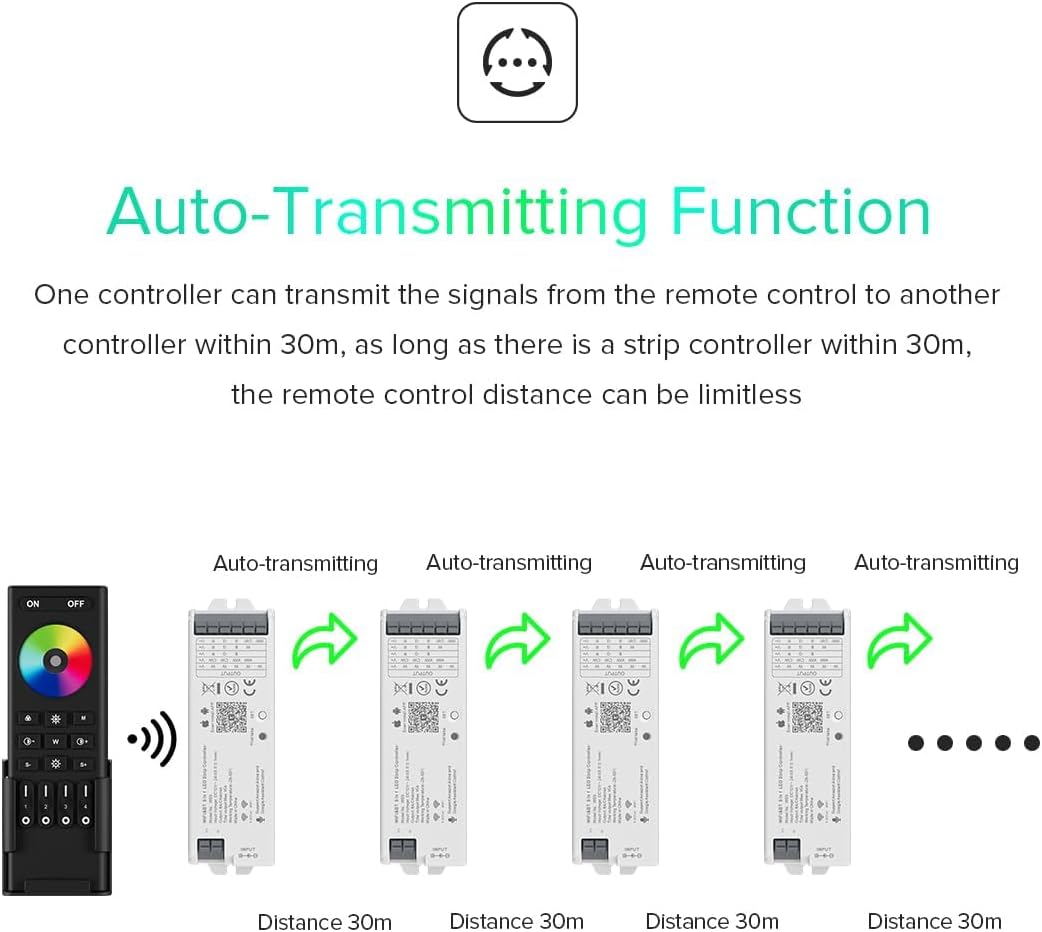

• 【Auto-transmitting function】Only for remote control dimming. One controller can transmit the signal from the remote control to the another controller within 30 meters. As long as there is a LED strip controller within 30 meters, the remote control distance can be limitless. All the controllers should be the same group.
• 【Auto-Synchronization Function】Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
